This is a 'plug and play' system. The only things that need to be done are fit the UV lamp (they don't travel well with the lamp in).
This involves unclipping the top of the UV housing (push button) plug in the lamp to the fitting wear gloves/avoid touching the glass.
Lower and clip into place.
Connect the water to the 1" BSP threaded connectors. Inlet on left, outlet on right.
Specs:

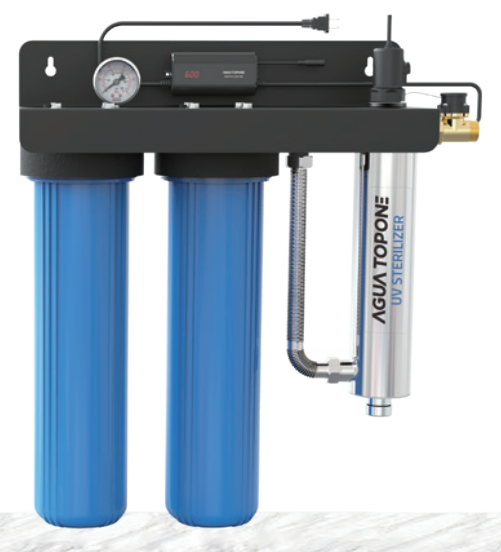

The two 20" housings hold a 1 micron sediment filter and a 5 micron Carbon filter for chemicals, taste and odour.
The UV lamp reduces bacteria by 99.9%
Flow rate is up to 60 litres per minute
Max water supply pressure 550kPa
Connections 1" BSP brass sleeve
Ballast monitors lamp health and warns when change needed
Easy lamp change - turn power off, press button on top of chamber and lift. Unplug old lamp and fit new one.
Power connection is standard 3 pin plug
We recommend holding a spare sediment filter in case of pressure drop.
